Babyplast 10/12 - 10/25
Babyplast 10/12 - 10/25 is the smallest fully hydraulic injection molding machine, specialized in the molding of high-precision microcomponents.
Horizontal Machines

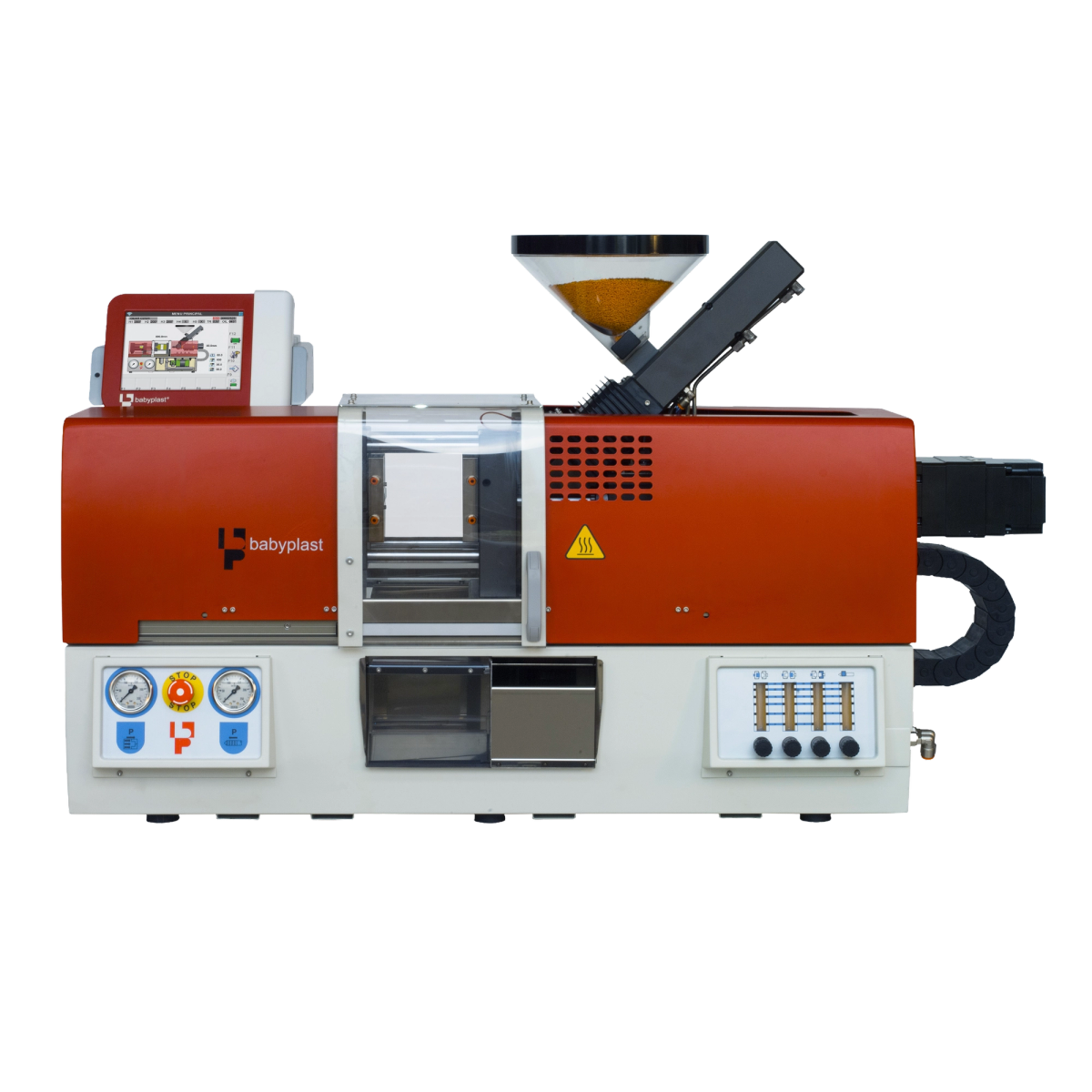

Babyplast Hybrids - 6/12, 6/25, 10/12, 10/25
The "Hybrid" versions (6/12Hy and 6/25Hy) are equipped with an injection system driven by a brushless motor, managed by an inverter and with encoder-controlled position.
- Precision micro-molding for high-quality plastic components
- Italian quality · manufactured with superior craftsmanship
- Expert support · consultation and technical assistance available
Overview
"Hybrid" Operating Principle (Electric Injection)
The "Hybrid" versions (6/12Hy - 6/25 Hy - 10/12Hy and 10/25Hy) have injection driven by a brushless motor managed by an inverter and with encoder-controlled position for high-precision molding at high injection speeds. All other machine movements are controlled by a high-efficiency motor pump unit (driven by an inverter), located in the oil tank and easily inspected.
Special machine plans
The original design of the machine plates allows the assembly of only the dies, thus significantly reducing the size and cost of the moulds.
Movements
The press is governed by microprocessors that monitor and manage the movements, times and temperatures of the production cycle.
Proportional Hydraulics
With the exception of electric injection, all other movements during the cycle phases are managed by proportional hydraulics.
Maximum security
CE certification.
Mold safety
Low pressure approach, with adjustable pressure threshold.
Color touch screen display
USB output and Ethernet connection Modbus TCP as standard or OPC UA (Optional)
Cooling Management
The amount of coolant flow at various points in the press, including the mold, can be adjusted using a flow meter.
For mould temperatures up to 90°C, a specific temperature controller for Babyplast is available with the option of direct control (On/Off, temperatures, alarms) from the machine.
Heating the mold or hot chamber
For mold temperatures up to 200°C, the machine comes standard with two 230V heating zones. These allow you to control the mold temperature directly from the display by inserting cartridge heaters and thermocouples. These same zones can also be used to control a nozzle or hot runner.
Decentralized injection
The injection unit has two injection positions: one central and one 25 mm lower. In the case of a single impression, where central injection is not possible (for aesthetic reasons), the cavity can be kept central to the planes by injecting on one side.
Key Features
- Electric injection – high precision and speed (10/12Hy 250mm/sec – 10/25 125mmsec)
- 8″ backlit LCD touch screen display
- 10 different languages selectable
- Pages can be easily consulted thanks to multifunction keys
- Quality Control on 8 configurable cycle parameters
- PID temperature control (up to 420°C)
- 5 temperature control zones, 2 free zones for mold or hot runner temperature regulation 230V
- Manages and stores over 1000 production cycles
- USB output program backup
- Ethernet connection: Modbus TCP – OPC UA (optional)
- Pressure control with electronic transducer
- Injection position and closure control with linear transducers
- Proportional hydraulics
- Soundproofed motor pump unit controlled by inverter
- Euromap 67 card (option)
- Savings in mold construction thanks to the machine die-holder plates
- Low running costs – average electricity consumption below 2 kWh – cooling consumption approximately 120 l/h
- Decentralized injection group available in two versions: 10/12: 5 pistons from 3 to 15 cm³ with pressures from 2,650 to 865 bar 10/25: 5 pistons from 16 to 24 cm³ with pressures from 1,240 to 550 bar
- Output for auxiliary control
- Cooling circuit (6 zones)
- Temperature tolerance band
- Hydraulic extraction with extractor return control sensor
- Jack management and air blowing (optional)
- Integrated control and storage of absorbed power (option)
