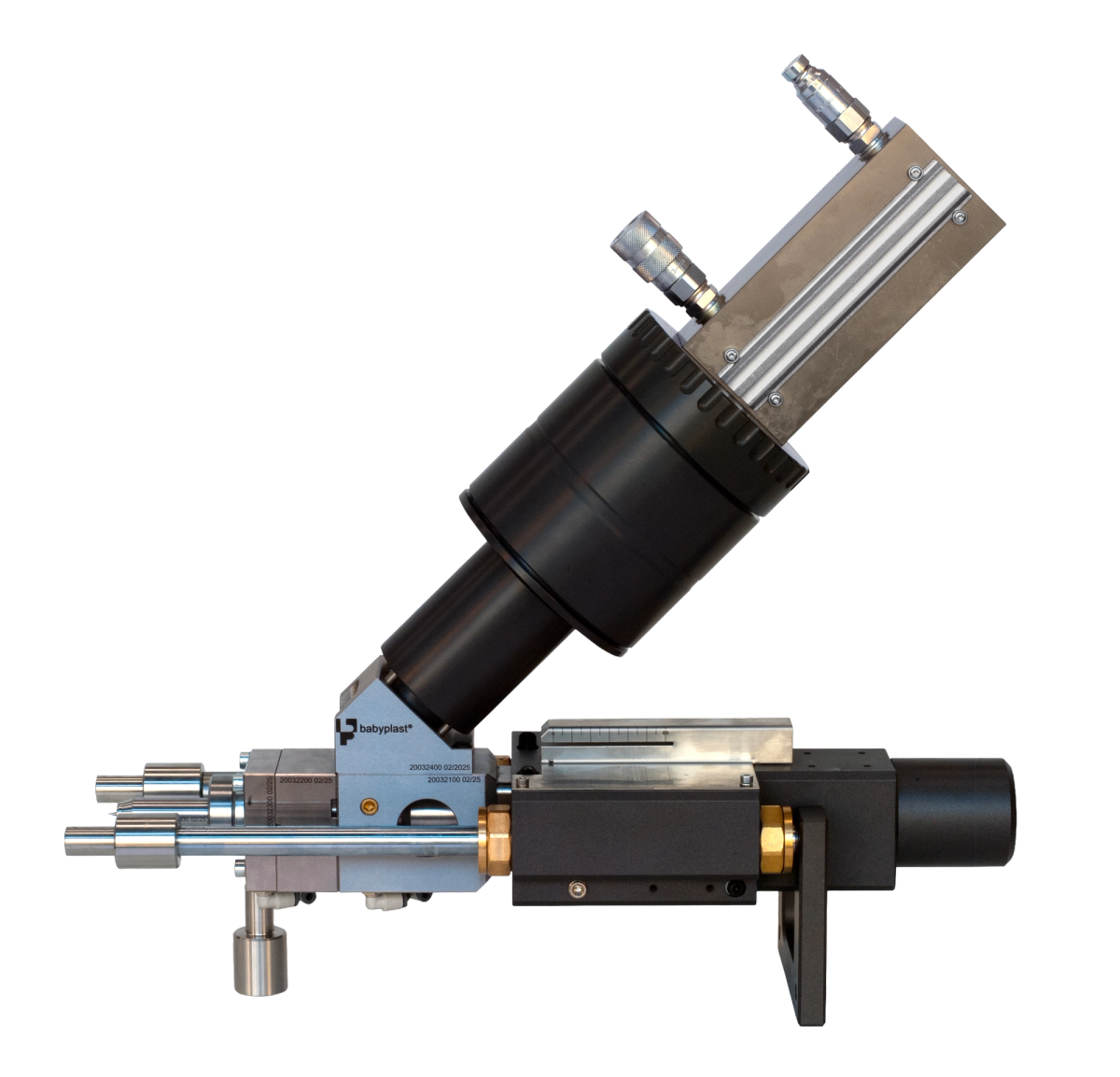

Babyplast I-12 LSR Cartridge

Producing bi-material LSR+Thermoplastic parts using your standard injection molding machine is possible with the help of a Babyplast Autonomous LSR Injection Unit (UAI LSR).

Request Quote →
  • Precision micro-molding for high-quality plastic components
  • Italian quality · manufactured with superior craftsmanship
  • Expert support · consultation and technical assistance available

Overview

Self-contained injection unit

Allows the molding of LSR+Thermoplastic with standard injection molding machines.

All movements are hydraulic

All the machine's movements are controlled by a high-efficiency motor pump unit (driven by an inverter), located in the oil tank and easily inspectable.

Installation directly on the mold

With the aid of two standard flanges, it is possible to install the injection unit in a horizontal or vertical position, either on the fixed part of the mould or on the moving part.

Movements

The Unit is governed by two microprocessors that control and manage the movements (pressures and speeds), times and temperatures of the production cycle.

Proportional Hydraulics

Thanks to proportional hydraulics, the pressures during the cycle phases are managed and memorized by the machine.

Maximum security

Interface with alarm I/O signals and gate protection.

Color touch screen display

USB output and Ethernet connection (modbus TCP).

Cooling Management

The amount of coolant flow in the injection unit is adjustable via a flow meter. In other parts of the machine, the coolant flow is regulated automatically.

Key Features

  • 8″ backlit LCD touch screen display
  • Cooled machine nozzle with pneumatic needle shutter for direct injection onto the workpiece
  • 3 versions of use: 0.5kg premixed cartridge – mixer with dispenser (1kg cartridges A and B) – mixer with dispenser (20kg containers A and B)
  • 10 different languages selectable
  • Pages can be easily consulted thanks to multifunction keys
  • Security key to enable cycle start from keyboard
  • Removable keyboard
  • Quality control on 4 cycle parameters
  • PID temperature control
  • Injection carriage movement
  • I/O interface with voltage-free contacts
  • Manages and stores over 1000 production cycles
  • USB output program backup
  • Ethernet connection: Modbus TCP
  • Pressure control with electronic transducer
  • Injection position control via encoder and closure with linear transducers
  • Proportional hydraulics
  • Soundproofed motor pump unit controlled by inverter
  • Output for shut-off nozzle control
  • Low running costs – installed power 3kW – cooling approximately 120 l/h
  • 5 pistons from 3 to 15 cm2 with pressures from 2650 to 815 bar
  • Output for auxiliary control
  • Cooling circuit
  • Jack management and air blowing (optional)
